POM Plastic Granules Injection Glass Fiber Reinforced 10-30% Household Miscellaneous Fuel Tank Cover Gear Raw Material POM
Product Description:
Polyoxymethylene (POM) raw material is suitable for extruding plastic sheet, rod, and mold material. It has good toughness, high impact, high strength, strong rigidity, rub resistance, good thermal stability, and creep resistance, which can replace metal partly.
Feature:
1) Excellent mechanical strength
2) High hardness strength
3) High wear resistance
4) Self-lubrication
5) Higher modulus
6) Chemical resistance and etc.
Specification:
Property Item Test Condition Test Data Test Method
Density – 1.14g/cm3 ISO 1183
MFR (190°C/2.16kg) 9 g/10min ISO 1133
Tensile strength(yield) – 62Mpa ISO 527
Tensile modulus – 2700Mpa ISO 527
Flexural strength – 61Mpa ISO 178
Flexural modulus – 2400Mpa ISO 178
Elongation(yield) – 13% ISO 527
Elongation at break – 30% ISO 527
Notched IZOD impact strength – 7.5Kj/m² ISO 180/1eA
Charpy Notched Impact Strength – 7.5Kj/m² ISO 179/1EA
Ball-indentation hardness (H 358/30) 140Mpa ISO 2039
Rockwell hardness (23°C) 114R ISO 2039
Distortion temperature (1.8Mpa) 115°C ISO 75
Vicat softening point (50N) 150°C ISO 306/B50
Vicat softening point (10N) 163°C ISO 306/A50
Melting point – 172°C ISO 3146
Application:
1. AV equipment such as VCRs, CD/laser disk/MD players, radio cassettes, headphone stereos
2. OA equipment such as printers, keyboards, and CD-ROM drives
3. Home electrical appliances such as washing machines and dryers
4. Auto parts such as seat belt mechanical components, outer door mirrors, door mirrors, and engine room components
5. Precision components used in products such as cameras and watches, construction materials, toys such as game machines, and stationery.
Package & Storage & Transportation:
1. Packing: 25kg/bag, 1000kg/jumbo bag or per your requirement. 20mt/20’FCL
2. Storage: Store in a drafty, dry warehouse away from fire and direct sunlight. Do not pile up in the open air.
3. Transportation: Avoid exposure to strong sunlight or rain during transportation. Do not transport together with sand, soil, scrap metal, coal, or glass. Prohibited to transport with toxic, corrosive, and flammable substances.
Products Display:

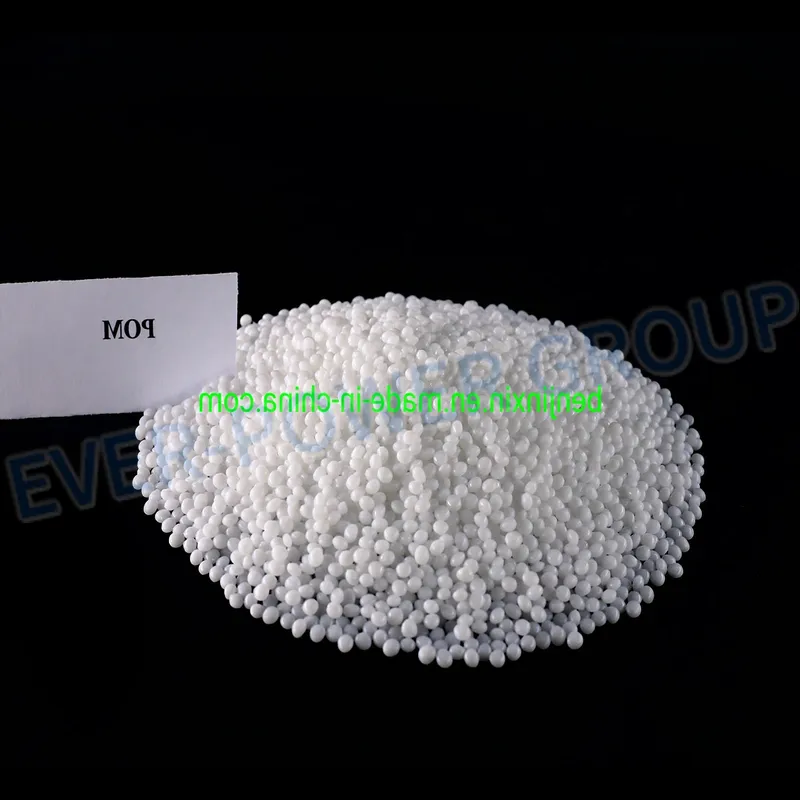

Virgin POM Granules
