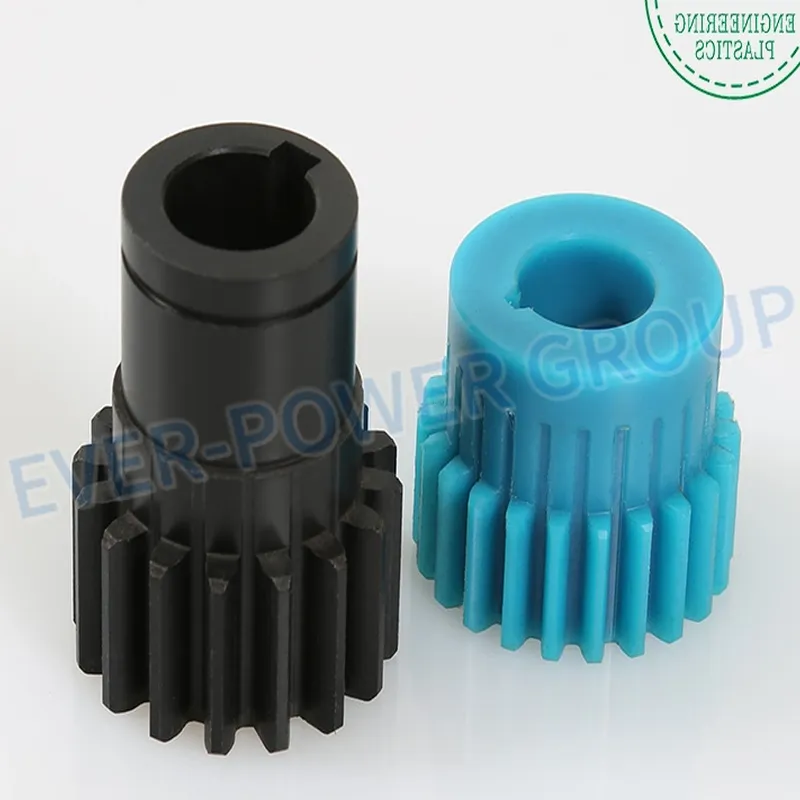

Plastic Gear OEM Injection Molded Mc Nylon Bevel Gear
The Plastic Gear OEM Injection Molded Mc Nylon Bevel Gear is a high-quality gear that is widely used in various industries. With its excellent performance and durability, it has become a popular choice for many applications.
Application:
– Motor
– Electric Cars
– Motorcycle
– Machinery
– Marine
– Toy
– Agricultural Machinery
– Car
– Domestic Appliances
Hardness:
Hardened Tooth Surface
Gear Position:
External Gear
Manufacturing Method:
Cut Gear
Toothed Portion Shape:
Bevel Wheel
Material:
Nylon
Customization:
Available | Customized Request
Product Description
The Plastic Gear OEM Injection Molded Mc Nylon Bevel Gear is made from 100% Virgin Raw Material by Guangzhou Engineering Plastics Industries (Group) Company. It is known for its toughness, even at low temperatures, and high hardness on the surface. It offers excellent mechanical properties such as lower shock, abrasion resistance, and good insulation and chemical properties. This makes it suitable for a wide range of mechanical structures and spare parts.
Advantages:
– Good Tensile strength
– High impact and notching impact strength
– High heat deflection temperature
– High strength and stiffness
– Good glide and limp home characters
– Good chemical stability against organic solvents and fuels
– Resistant to thermal aging (applicable temperature between -50°C and 110°C)
– Size alternation by humidity absorption must be considered
Application:
– Substituted for wear parts of mechanical equipment
– Used as quick-wear parts of equipment instead of copper and alloy
– Shaft sleeve, bearing bush, lining, lining plate, gear
– Worm gear, roller copper guide rail, piston ring, seal ring, slide block
– Spheric bowl, impeller, blade, cam, nut, valve plate
– Pipe, stuffing box, rack, belt pulley, pump rotor, etc.
Main Properties of Nylon
| Property | Item No. | Unit | MC Nylon (Natural) | Oil Nylon+Carbon (Black) | Oil Nylon (Green) | MC901 (Blue) | MC Nylon+MSO2 (Light black) | |
| Mechanical Properties | 1 | Density | g/cm3 | 1.15 | 1.15 | 1.135 | 1.15 | 1.16 |
| 2 | Water absorption (23ºC in air) | % | 1.8-2.0 | 1.8-2.0 | 2 | 2.3 | 2.4 | |
| 3 | Tensile strength | MPa | 89 | 75.3 | 70 | 81 | 78 | |
| 4 | Tensile strain at break | % | 29 | 22.7 | 25 | 35 | 25 | |
| 5 | Compressive stress(at 2%nominal strain) | MPa | 51 | 51 | 43 | 47 | 49 | |
| 6 | Charpy impact strength (unnotched) | KJ/m2 | No break | No break | ≥50 | No BK | No break | |
| 7 | Charpy impact strength (notched) | KJ/m2 | ≥5.7 | ≥6.4 | 4 | 3.5 | 3.5 | |
| 8 | Tensile modulus of elasticity | MPa | 3190 | 3130 | 3000 | 3200 | 3300 | |
