POM Plastic Granules Injection Grade Wear Resistant High Rigid Gear Special Material
Product Description:
Polyoxymethylene (POM) is a raw material suitable for extruding plastic sheets, rods, and molds. It offers good toughness, high impact strength, high strength, strong rigidity, abrasion resistance, good thermal stability, and creep resistance. It can be used as a partial replacement for metal.
Features:
1) Excellent mechanical strength
2) High hardness strength
3) High wear resistance
4) Self-lubrication
5) Higher modulus
6) Chemical resistance, etc.
Specification:
– Product: Polyoxymethylene
– Type: –
– Standard: GB/T 22271.3-2016
– Batch No.: –
– Test Items: Unit, Standard value, Test results, Standards
– Melt mass-flow rate: g/10min, 7<·≤11, 8.36, GB/T 3682.1-2018
- Melting temperature: ºC, ≥160, 165, GB/T 19466.3-2004
- Density: g/cm3, 1.38~1.43, 1.406, GB/T 1033.1-2008
- Yield stress: MPa, ≥58, 65, GB/T 1040.1-2018, GB/T 1040.2-2006
- Strain at break: %, ≥20, 43
- Tensile modulus: MPa, ≥2400, 2455
- Charpy notched impact strength: KJ/m2, ≥4.5, 6, GB/T 1043.1-2008Application:
1. AV equipment such as VCRs, CD/laser disk/MD players, radio cassettes, headphone stereos.
2. OA equipment such as printers, keyboards, and CD-ROM drives.
3. Home electrical appliances such as washing machines and dryers.
4. Auto parts such as seat belt mechanical components, outer door mirrors, door mirrors, and engine room components.
5. Precision components used in products like cameras, watches, construction materials, toys such as game machines, and stationery.Package, Storage & Transportation:
1. Packing: 25kg/bag, 1000kg/jumbo bag, or per your requirement. 20mt/20'FCL.
2. Storage: The resin should be stored in a drafty, dry warehouse away from fire and direct sunlight. It should not be piled up in the open air.
3. Transportation: During transportation, the product should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal, or glass. Transportation with toxic, corrosive, and flammable substances is strictly prohibited.Products display:

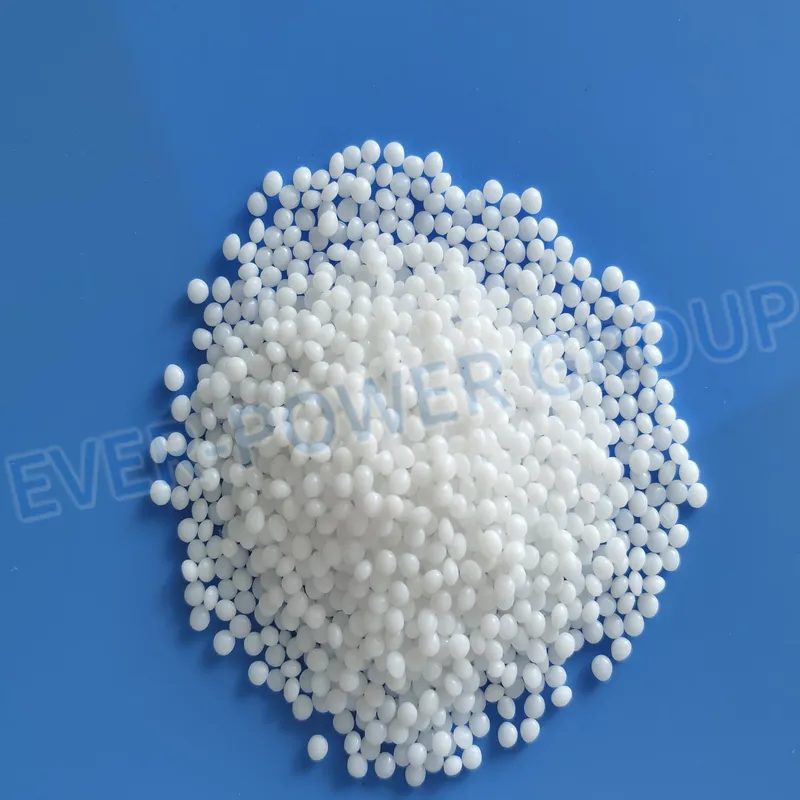

- Virgin POM GranulesOur Main Products:
- Plastic Spur Gear
- Plastic Helical Gear
- Plastic Worm Gear
- Plastic Bevel Gear
- Plastic Pinion Gear
- Plastic Nylon Gear
- Plastic Transmission Gear
- Plastic Sprocket Gear
- Plastic Wheel Gear
- Plastic Injection Gear
- Plastic Ring Gear
- Plastic Rack GearFAQ:
1. What is the main application of POM plastic granules?
2. What are the advantages of POM plastic granules compared to metal?
3. Can POM plastic granules be used as a replacement for original spare parts?
4. How should POM plastic granules be stored?
5. What other products does your company offer besides POM plastic granules?
